Electromagnetic Wire Production Line CTC Continuous Transposed Cable Machine
1. Application
Our Machine has high speed with invariablenes tension.
This machine is use for making the transformer wire.
It's according the request of transformer manufactory for improve the quality of the transformer wire.
2. Main data
- 15-8mmx2mm 9.5m/min 3990m/8 hours
- 21-6mmx1.5mm 7.5m/min 3150m/8 hours
- Center height 1000mm
- Power supply 3x415V±5%, 50Hz±1Hz
3. Electrical Control
- PLC & driver Lenz
- Servo motor Lenz
- Variable frequency motor ABB
- Torque motor Haozheng, China
- Electronic parts Mainly OMRON
- Bearings Ha Er Bin or Wafangdian, China
- PLC SIEMENS
- Touch panel function Input/display
4. Composition
| HW560/48(64) Transposed cage | 1 set |
| Electrical control system | 1 set |
| TQD II-2500 Swayable Caterpillar | 1 unit |
| LS-2000 Port type take-up stand | 1 unit |

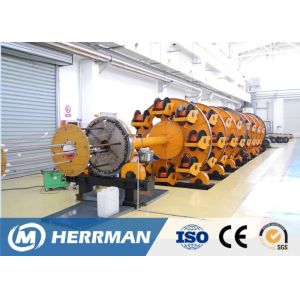

5. Picture for reference
